DIMENSIONS
Length (less forks): 221.3 in.
Width: 94.5 in.
Height: 100.5 in.
Wheelbase: 119.5 in.
Ground Clearance: 16.3 in.
Tread: 81.8 in.
Turning Clearance: 15’0”
Max. Reach from Front Tires to 24 in.  Load Center: 26’8”


ENGINE
Cummins 4BT3.9 Turbo Diesel
• 110 HP @ 2,500 RPM
• Torque Rating 293 lb. ft. @ 1,500 rpm

TRANSMISSION
• Power shift, 3-speed forward and reverse

AXLES & BRAKES
• Full-time planetary 4-wheel drive with wheel end wet disc brakes

BOOM
• Telescopic 3-stage welded box section construction using high-strength, low-alloy steel.
• Replaceable high-density wear pads, to limit friction, with wear indicators

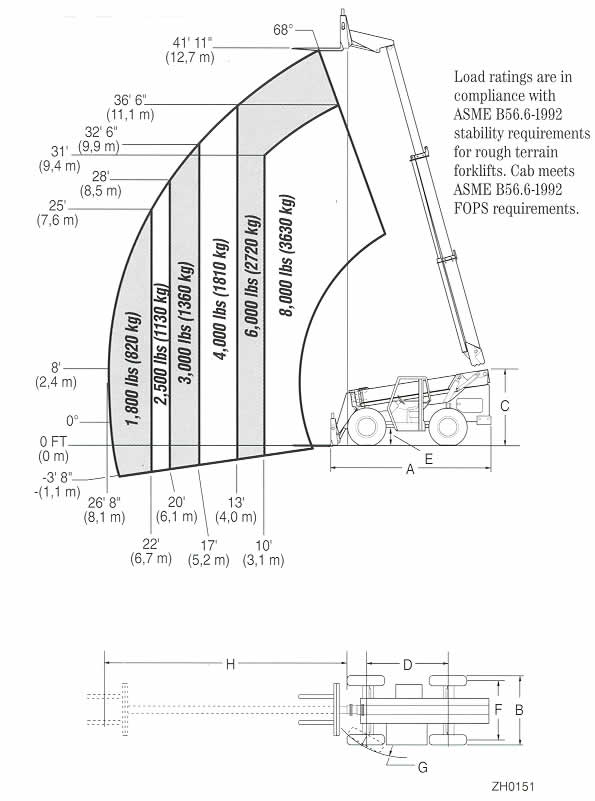

OPERATING SPECS
• Max lift capacity: 8000 lbs. (3630 kg)
• Lift height: 41’11”
• Max reach below grade: 3’8”
• Curb weight: 23,840 lbs. (10,823 kg)
• Hydraulic oil capacity: 53 gal. (201 liters)
• Fuel tank capacity: 35 gal. (132 liters)
• Standard tires: 13.0 x 24, 12-ply
• Frame tilt to left or right: 10 - 730
