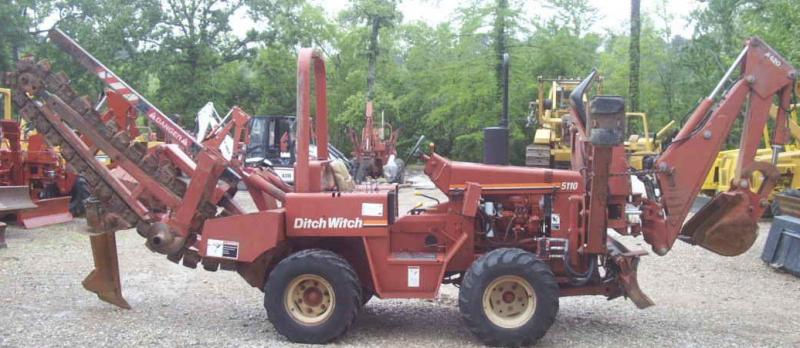

Manufacturer: Ditch Witch
Model: 5110

  US/Imperial Metric
Engine: Deutz F3L912
Height: 96.5 in
Length: 122 in
Width: 69.5 in

Additional Info:
DIMENSIONS
Angle of approach: 22.5°
Overhang beyond tire: .75 in
Height: 96.5 in
Length - transport: 122 in
Wheelbase: 63.5 in
Width: 69.5 in
Tread: 50.3 in

GENERAL
Ditch Witch model 5100 tractor, 4-wheel drive, rigid frame,
ground drive through rubber tires, conventional two wheel power steering
(optional 4-wheel steering) basic riding unit.

OPERATIONAL
Vehicle speeds @ 2630 rpm with 29 x 12-15 tires
Maximum transit forward
1st gear: 2.1 mph
2nd gear: 3.6 mph
3rd gear: 6.1 mph
4th gear: 8.6 mph
Maximum reverse: 1.8 mph
Crowd speed, full load (Max. only. Actual speed varies with soil and job conditions): 0-45 fpm
Max. allowable operating weight(optional tires): 10,000 lb
Basic unit weight w/o attachments with 29 x 12.0-15, 4-ply tires and standard backfill blade: 4,950 lb

BACKFILL BLADE
Standard: 4-way hydraulic lift angle
Blade width: 64 in
Blade height: 13 in
Lift height above ground (standard tires): 15.5 in
Blade drop below ground (standard tires): 6.5 in
Maximum swing angle (left/right): 27.5°
Tilt angle (up/down): 20°

POWER TRAIN
Ground drive:
Transmission (mechanical): 4 speeds forward, 1 reverse with gear drive to axles
Ground drive (hydraulic): Hydraulic drive infinitely variable from zero to maximum
forward and reverse through gear reduction to axles
Clutch: Automotive spring-loaded foot-operated friction drive
Service brake: Disc, foot operated
Parking brake: Disc, hand operated
Tires
29 x 12.50-15 4 ply bar lug, 1780 lb @ 20 psi, 807 kg @ 138 kPa
31 x 15.50-15 4 ply bar lug, 2275 lb @ 20 psi, 1031 kg @ 138 kPa
31 x 15.50-15 8 ply bar lug, 3415 lb @ 40 psi, 1549 kg @ 276 kPa
31 x 15.50-15 4 ply turf tread, 2275 lb @ 20 psi, 1031 kg @ 138 kPa
Trencher Drive
Transmission: 4speeds, 1 reverse through shock absorbing clutch belt drive to right angle drive to head shaft
Clutch: Automotive spring-loaded foot operated friction drive

POWER
Engine: Deutz F3L912
Fuel: Diesel
Cooling medium: Air
Number of Cylinders: 3
Displacement: 172.5 cubic inches
Bore: 3.94 in
Stroke: 4.72 in
Engine manufacturer's gross horsepower rating: 58 hp
Max. governed speed as installed (no load): 2630 rpm
Flywheel power (full load): 52.5 hp

HYDRAULIC
Pump capacity setting (w/M552 attachment): 2500 psi (17237.5 kPa) per section
Pump capacity setting (w/all other attachments): 2000 psi (13790 kPa) per section
Crowd relief valve setting
Normal: 2250 psi
Normal (M530/M552): 2750 psi
High: 2000 psi
Filtration: Return full flow with bypass valve 10 micron nominal

FLUID CAPACITIES
Fuel tank: 13 gal
Engine oil including filter: 8.5 qt
Transmission: 7.5 pt
Gear Box: 14 qt
Hydraulic system: 19.5 gal
Differential
Rockwell: 15 qt
Dana 70 (front): 8.5 pt

BATTERY
Group 31H SAE Res. Cap. 120 min. SAE cold crank @ 0° F (-18°C), 700 amp
